Casting mixer for AAC Line
Application:

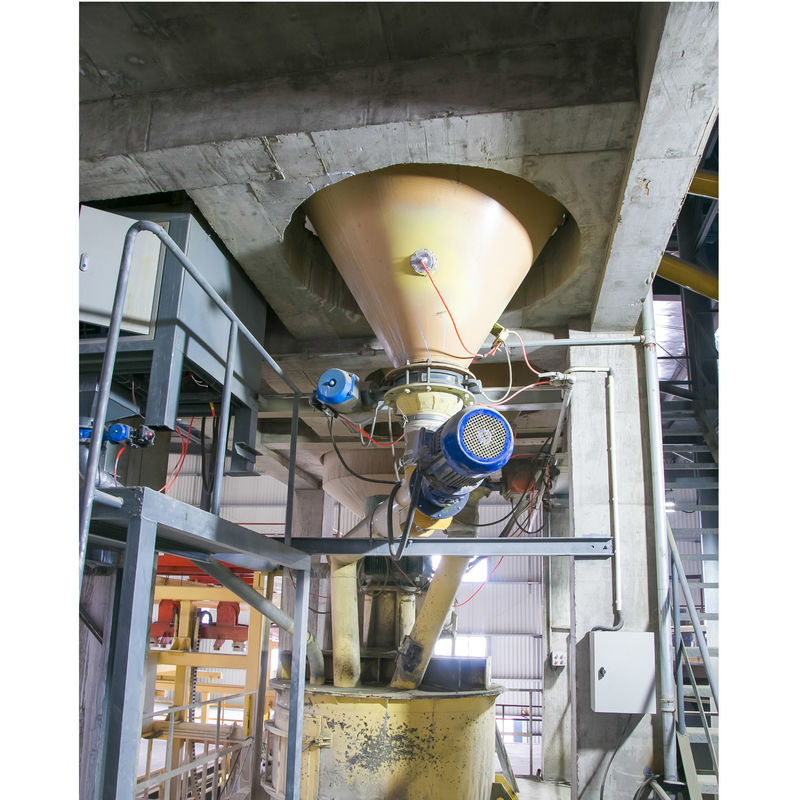

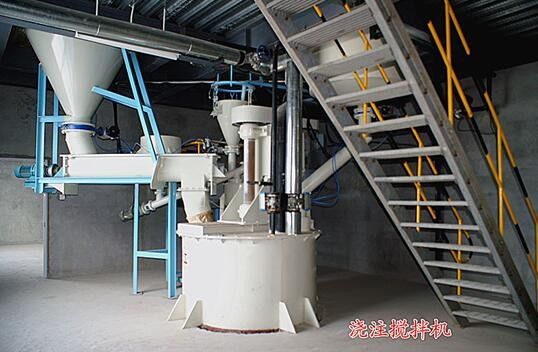

The casting mixer (refer to the picture) is used for mixing concrete body before casting. It is located on the casting blank mold.
Structure:

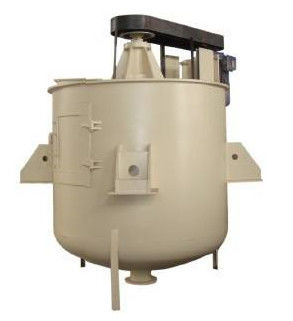

The casting mixer is composed of mixing drum and casting arm
The mixing drum is cylindrical and it is compose of motor, mixing shaft and mixing blade
The sprue gate is controlled by the pneumatic butterfly valve.
Work principle:
The casting mixer adopts push-type method, which make the mixing very quickly. It is driven by the motor, and the motor is rotated as clockwise direction to drag the mixing blade to rotate, and make the material turn in the drum

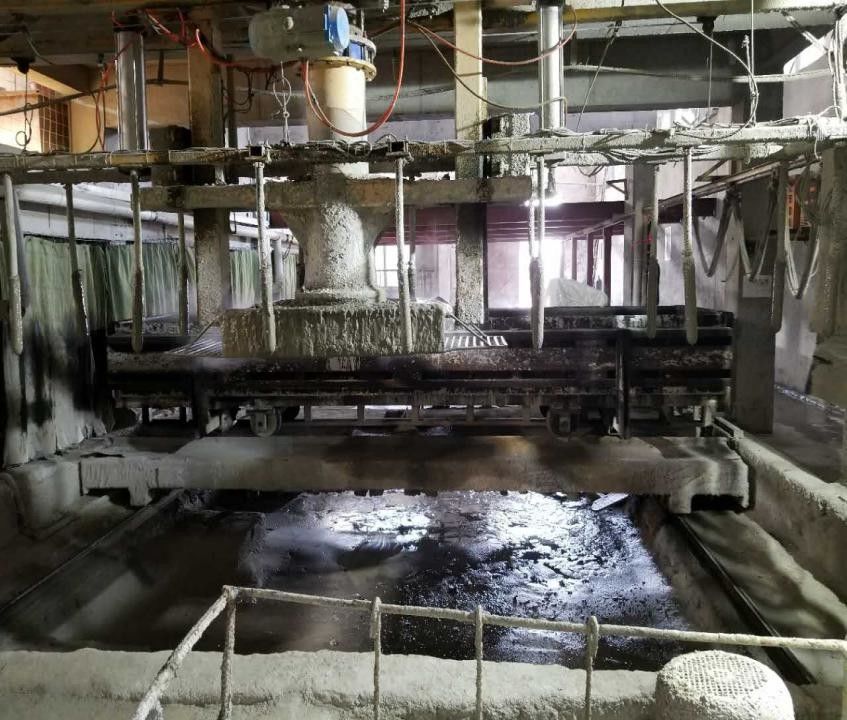

The casting arm is located under the mold. The butterfly valve starts when the mixing material is acceptable, and the material will goes into the casting arm and then start the casting.
Technical parameter:
Max size | ||
Lenth | 2520 | mm |
Width | 2520 | mm |
Height | 4113 | mm |
Weight | 3494 | kg |
Motor Type | Y280S-6 | |
Power | 75 | KW |
Rotate speed | 960 | r/min |
Drum capacity | 5.95 | m³ |
Mixing type | Push type | |
Mixing speed | 960 | r/min |
Pneumatic butterfly valve | D671J-10-250 |
Installment:
Put the mixing drum on the prepared base, and the place the rubber washer on the contact surface.
Maintenance and repair:
Maintenance
Clean the mixing drum, mixing shaft and casting arm once a week. The gasket cover should be tight during the cleaning, and the each bearing should be cleaned once per half year.
Repair
Disassemble the sprue gate and clean it and pneumatic butterfly valve and the pipe once per month,
