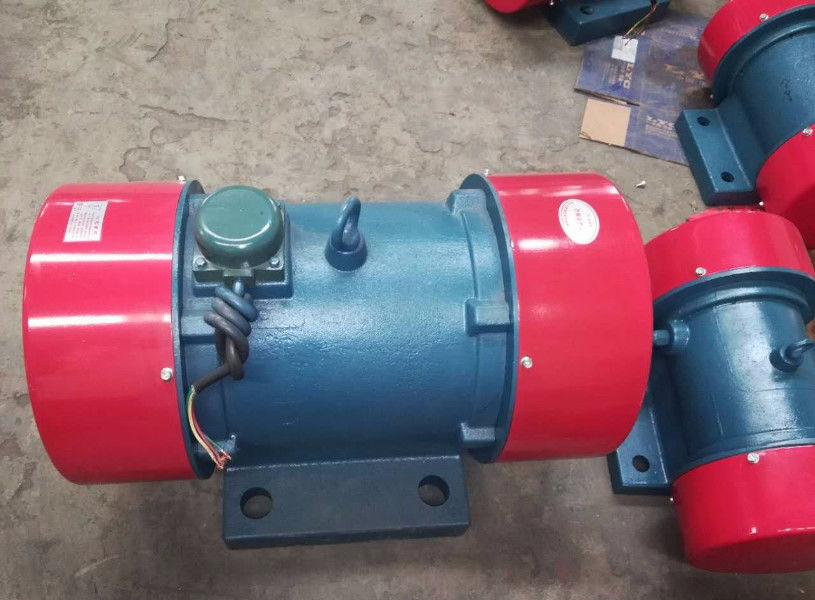

Vibration motor for AAC Production Line
Vibration motor is a new type of vibration motor developed by German and Italian technology introduced by our company. VB vibration motor has exquisite design, high efficiency, energy saving, environmental protection, safe and reliable operation, convenient installation and maintenance, simplified structure, reduced cost, making the shaker handle more materials.The excitation force can be easily adjusted within a certain range to meet various operating requirements.The application of new sealing technology and imported sealing parts greatly improves the dustproof and moisture-proof ability of vibration motor, and the product can run safely and stably in various high-dust and damp places.Advanced design and precise manufacturing process ensure long service life of the products.
Service conditions of series vibration:
|4||Allowed ambient temperature||40℃-60℃|
|5||Insulation grade||Grade B|
Principle and application of vibration motor:
A set of adjustable eccentric blocks are installed at both ends of the rotor shaft of the two axes. The centrifugal force generated by the rotation of the eccentric blocks is used to obtain the exciting force.It is used in the silo, hopper, chute wall vibration, or self-synchronous linear vibrating screen, vibration feeder, vibration conveyor and other vibration machinery excitation source, metallurgy, mining, coal, building materials, chemical and other departments of the ideal equipment, has a wide range of applications.VB vibration motor shell is completed by one-time casting, fully increase the rigidity strength, and the use of all-steel casting, to ensure the appearance of the surface modeling.The outer protective cover is also used to be formed by one-time drawing mould, so that the sealing of vibration motor is better.The eccentric block thickens and increases the vibration power of the same type vibration motor.The vibration motor has been strengthened and optimized in all aspects to make it better fit with the vibrating screen, more convenient for disassembly and installation, and simpler for maintenance.
Service conditions of series vibration motor:
1. Rated voltage: 380V-660V
2. Rated frequency: 50HZ-60Hz
3. Protection level: IP55
4. Allowed ambient temperature: 40℃-60℃
5. Insulation grade: Grade B
6. Work schedule: Continuous
Series vibration motor features:
1. The vibration motor generates vibration with smooth rotation and low noise.
2. Vibration motor is fully enclosed structure, which can work under any dust condition without explosion-proof requirement.
3. Long service life of vibration motor, bearing life up to 5000 hours for 2 poles, 10000 hours for 4, 6 and 8 poles.
4. The vibration motor can be stepless adjusted by adjusting the Angle of eccentric block.
5. Vibration motor can synthesize various vibration forms in multiple units to complete various operation requirements.
6. Various types of vibration motor, complete specifications, can meet the work needs of all kinds of vibration machinery.Operating conditions ambient temperature: not more than 40℃.
