Lightweight Panel Making Machine-SANKON Electrical Slurry Flow Meter For Measuring

Lightweight Panel Making Machine-SANKON Electrical Slurry Flow Meter For Measuring

  • High Light

    Electrical Slurry Flow Meter


    SANKON Slurry Flow Meter

  • Name
    Slurry Scale
  • Condition
  • Voltage
  • Processing
    Brick Production Line, Brick Molding Machine, Brick Cutting Machine, Autoclaving, Kirpichniy Zavod
  • Material
    Stainless Steel, Iron+paint
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Video Technical Support, Field Maintenance And Repair Service
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
  • Delivery Time
  • Payment Terms
    L/C, T/T
  • Supply Ability

Lightweight Panel Making Machine-SANKON Electrical Slurry Flow Meter For Measuring

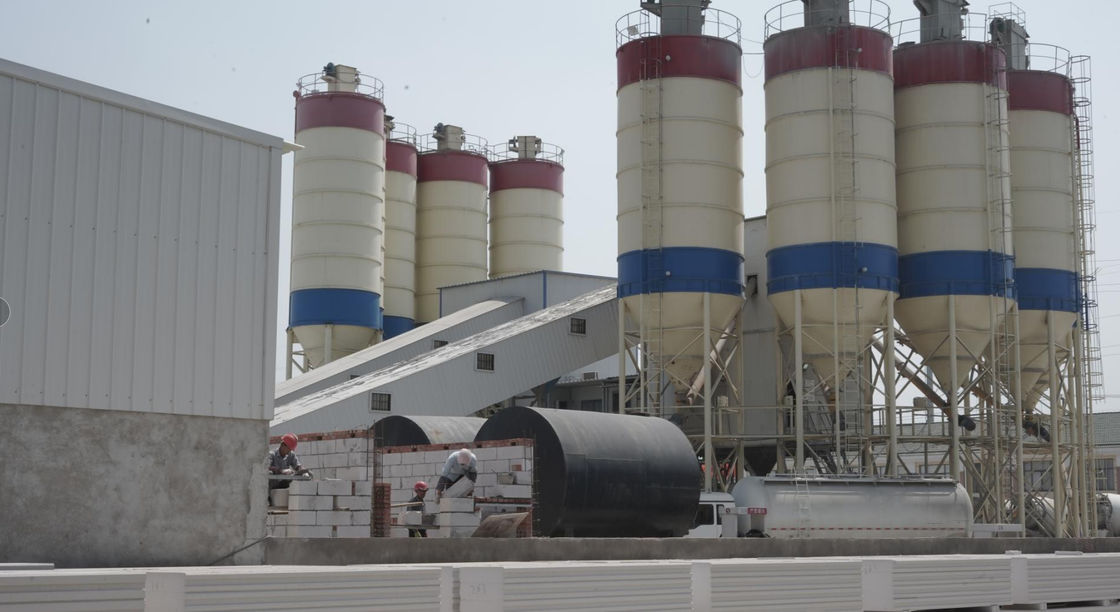

What is AAC?

The AAC production process includes raw material preparation, batching and mixing, pouring, precuring, cutting, autoclaving, and packing. With decades of experience in serving the AAC blocks production machinery industry, we can supply customers with quality AAC block production lines with capacity ranging from 100,000m3 to 400,000m3 per year.


How to start the project?

We will offer the customized plant layout and the related design documents. All the equipment will be debugged before the delivery. We'll also arrange professional project manager and engineers for site installation supervision and local training to ensure the successful production start-up.


Electrical Slurry Meter

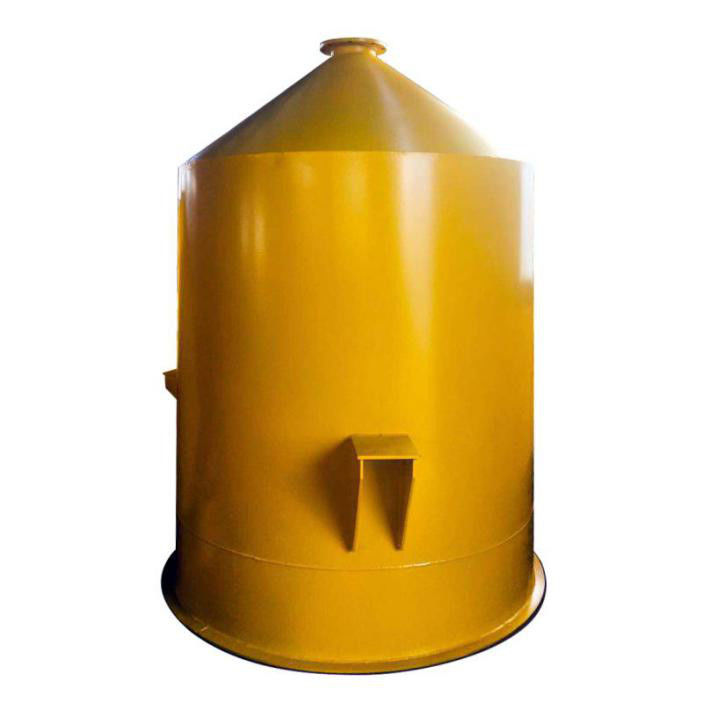

It is a meter (refer to the picture) used for measuring the powder before slurry feeding for mixing.

Lightweight Panel Making Machine-SANKON Electrical Slurry Flow Meter For Measuring 0

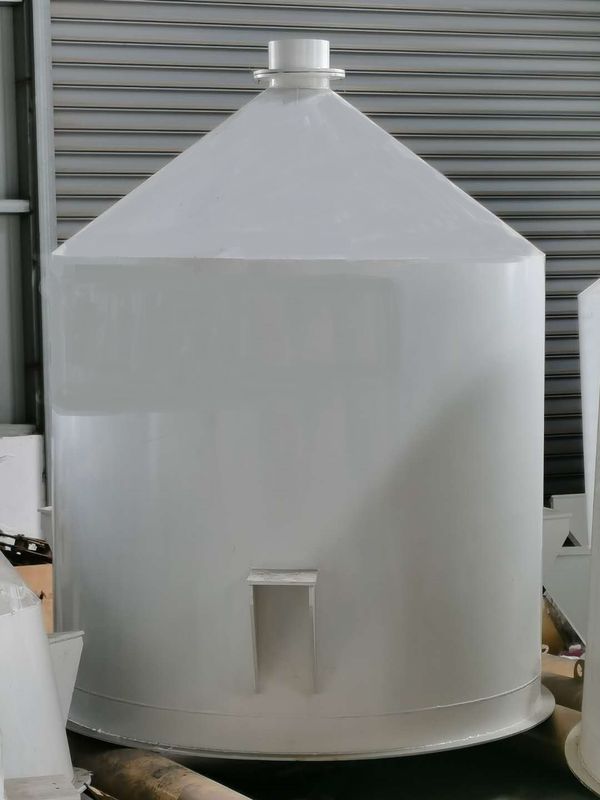

The meter is composed of chamber, support ring, load sensor and pneumatic butterfly valve.

The drum shapes like a truncated cone, which make the discharge quick. It is made of rolling steel and there is washing pipe inside.

The support ring is made of steel and there is chamber on the top and the support ring below it, and there are 3 load electrical sensors hang among the chamber and support ring, and there is pneumatic butterfly valve in the discharge drum to control the program.

Lightweight Panel Making Machine-SANKON Electrical Slurry Flow Meter For Measuring 1

Work Principles

When the slurry is fed into the chamber, the electrical sensor will transfer the weight to the display automatically, and it will output the signal to the computer. The discharge is controlled by the pneumatic valve.



Shut off the power supply after each shift, and clean the drum wall, in order to make sure the powder weighing is accurate.

Clean the dust on the sensor and weighing display.


Brief introduction of SANKON Company.

History:Sankon Building Materials Technology CO.,LTD are professional building materials machinery and equipment research, manufacture and export company. Company business started from 2004, now our workers, sales and service branch staff are more than 200 people. Whole company year turnover is more than 50million USD. The company's main products are AAC block making machinery, concrete block making machine, concrete pole pipe making machine, concrete roof tile machine and mixers.

Products:The company passed ISO9001 management system and the European Union CE certification, the products absorb the German mechanical design and manufacturing experience, focus on quality design, high quality material, exquisite welding and strict inspection process to ensure high quality equipment and maximize service life. Company products are exported to Southeast Asia, Africa, South America, Eastern Europe, the Middle East, Australia and more than 100 countries and regions.


Spirit:To be persistent and innovative; To achieve an excellent and perfect SANKON.


Packing & Shipping:

Package conforms to the requirements of customs.


After-sales service:
1.Provide engineers abroad installation and commissioning service.
2.Held online or site training for workers to ensure the safe operation.

3.Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible.

4.We supplies the complete technical documents and the relative drawings of the electric components which were written in Chinese and English.

5.Service is available lifelong.
