6m3 850kg steel frame Six cube Reck Slurry Mixers

6m3 850kg steel frame Six cube Reck Slurry Mixers

  • High Light

    Six Cube Reck Slurry Mixers

    ,

    Steel Frame Reck Slurry Mixers

    ,

    6m3 Reck Slurry Mixers

  • Place of Origin
    CHINA
  • Brand Name
    SANKON
  • Certification
    ISO9001/CE
  • Model Number
    6m³
  • Minimum Order Quantity
    1SET
  • Price
    USD1~24000/SET
  • Packaging Details
    SUIT FOR SHIPPING
  • Delivery Time
    1MONTH
  • Payment Terms
    L/C, T/T
  • Supply Ability
    2000SETS/YEAR

6m3 850kg steel frame Six cube Reck Slurry Mixers

Six-cube Slurry Mixer



Application:

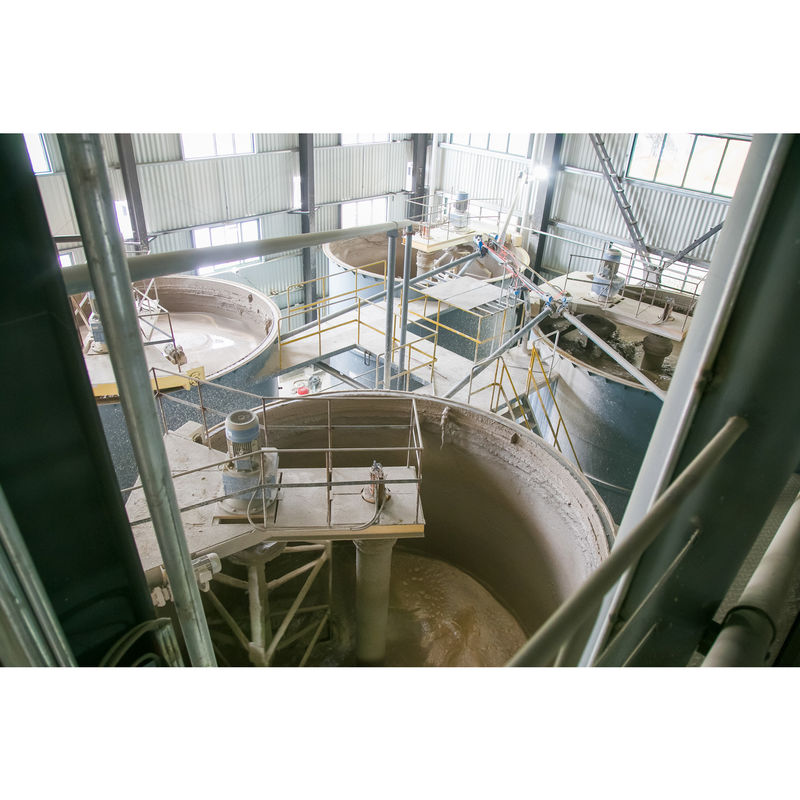

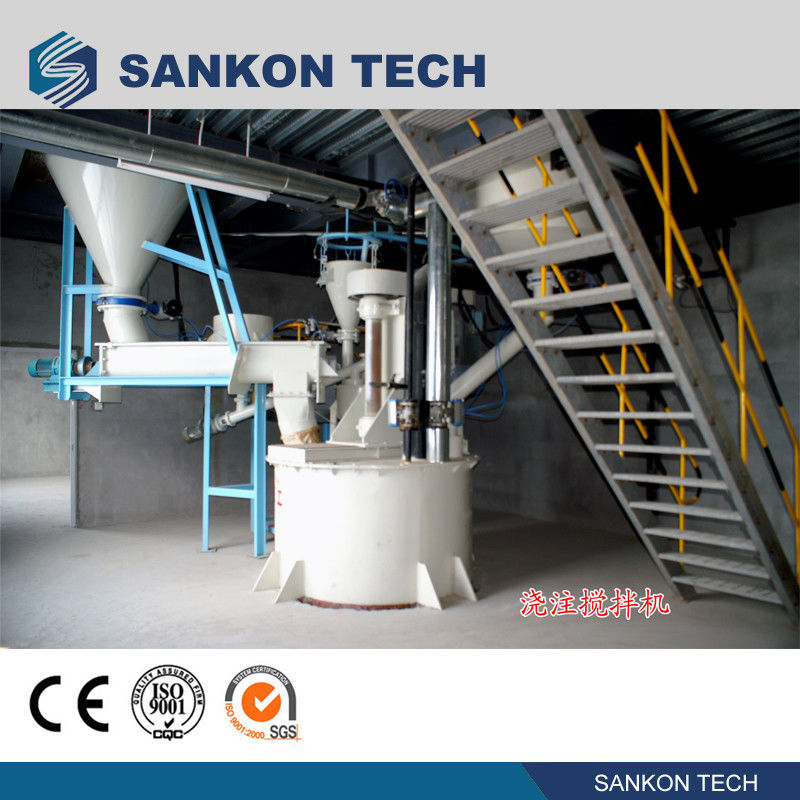

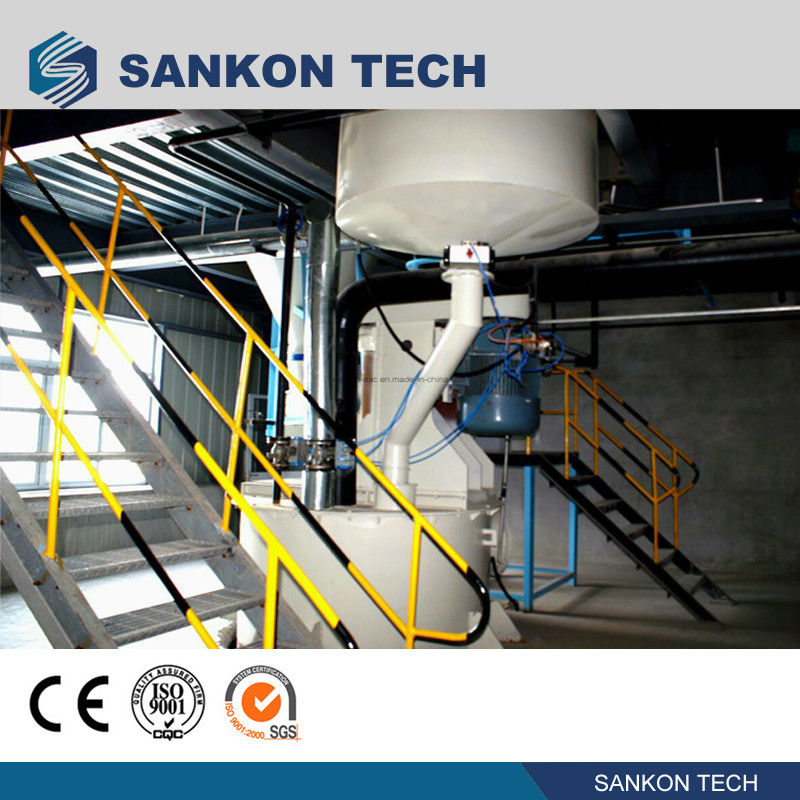

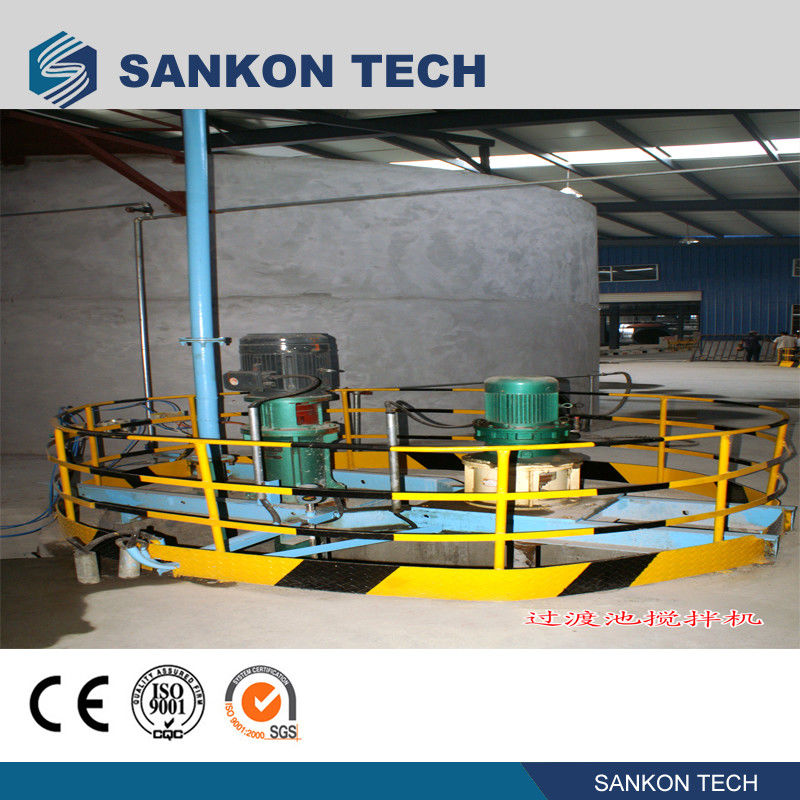

The Six-cube Slurry Mixer (refer to the photo and drawing) is especially used to mix the lime, Steam Aerated concrete arenaceous powder, water completely to form slurry.

6m3 850kg steel frame Six cube Reck Slurry Mixers 0

Structure:

Mortar mixer is composed of helical gear reducer, channel steel frame, shaft and mixer, etc

Helical gear reducer should be installed in a vertical position

Roller and mixer are welded together.



Working principle:

The mortar mixer is used to mix the lime, Steam Aerated arenaceous powder, water completely to form slurry. Mixer is driven by helical gear reducer, which rotate counterclockwise from up to down.



Technical parameter:

Size (Maximum)
Lenth 2500 mm
Width 1400 mm
Height 2775.5 mm
Weight 850 kg
Helical gear reducer:
Model CRM97-59.7-Y-5.5-V1
Power 5.5 KW
rotate speed 1440 r/min
Speed ration i=59.7



Maintenance and repair

Maintenance:

Please make sure that there is no slurry in the basin before stop working. Otherwise, the mixer may be damaged because of slurry sedimentation.

Please check lubricating oil of the reducer and to fill timely. Normally, lubricating oil is expected to be changed after six monthsTo clean the mixer and its basin after every day’s work.



Repair:

Please check all fasteners to avoid any possible loose and change worn parts.
