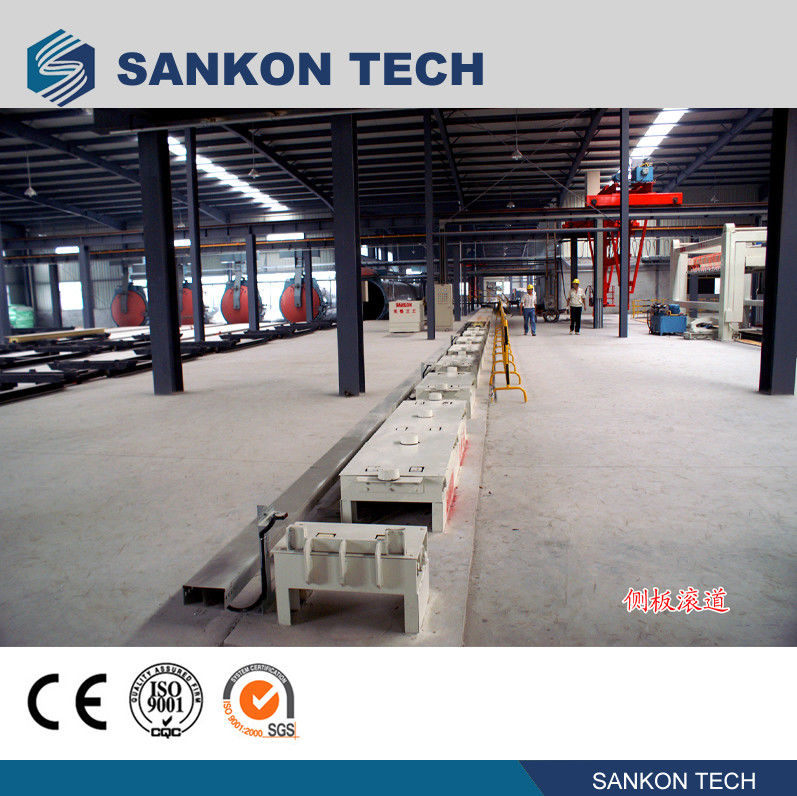

Side Rolling guide
The side rolling guide can move automatically when the side panel moves,
The length and the rolling guild quantity can be made base on process required.
Driving rolling guide:Max size
a. L: 1415 mm W: 400 mm h: 400mm
b. Weight: 128.6 kg
c. Cycloidal pin wheel speed reducer: XWD2-43-0.37
Motor power 0.37Kw
Transmission ratio i=43
d. Convey wheel rotate speed: 34r/min
Driven rolling : Max size
a. L: 925mm W: 400mm H: 400mm
b. Weight: 82kg
The convey line is composed by many rolling guide, and each has driving and driven machine, when the convey line is assembled, it should install the driving and driven machine one by one
The driving convey rolling guide is composed of base, driving shaft, convey wheel, bearing, bearing base and joint shaft and reducer, etc. The base is welded by steel and steel panel
The driven convey machine is composed of base, transmission shaft, convey wheel, bearing, bearing base, and the base is welded by steel and steel panel.
Put the side panel on the assembled convey line, connect with the power supply to start the reducer to drag the convey wheel rotate.
The bearing should add lubricant oil regularly
The rolling wheel should clean if it does not work.
Nobody is allowed to stand within the convey line during it runs
Shut-off the power supply after each shift.
