Horizontal SANKON 12.9kw AAC Block Cutting Machine

Horizontal SANKON 12.9kw AAC Block Cutting Machine

  • High Light

    12.9kw AAC Block Cutting Machine

    ,

    SANKON AAC Block Cutting Machine

  • Name
    Horizontal Cutting Machine
  • Rated Voltage
    380V
  • Brand
    SANKON
  • Certificate
    ISO9001/CE
  • Packing Type
    Suit For Shipping
  • After-sales Service Provide
    Engineers Available To Service Machinery Overseas, Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Online Support
  • Place of Origin
    CHINA
  • Brand Name
    SANKON
  • Certification
    ISO9001/CE
  • Model Number
    CUSTOMIZED
  • Minimum Order Quantity
    1SET
  • Price
    USD $1~100000/SET
  • Packaging Details
    SUIT FOR SHIPPING
  • Delivery Time
    3MONTHS
  • Payment Terms
    L/C, T/T
  • Supply Ability
    120SETS/YEAR

Horizontal SANKON 12.9kw AAC Block Cutting Machine

AAC block advantages:
1.Improved thermal efficiency reduces the heating and cooling load in buildings.

2.Porous structure allows for superior fire resistance.

3.Workability allows accurate cutting, which minimizes the generation of solid waste during use.

4.Resource efficiency gives it lower environmental impact in all phases of its life cycle, from processing of raw materials to the disposal of waste.

5.Light weight saves cost & energy in transportation, labor expenses, and increases chances of survival during seismic activity.

6.Environmentally Friendly: When used, it helps to reduce at least 30% of environmental waste as opposed to going with traditional concrete. There is a decrease of 50% of greenhouse gas emissions. When possible, using autoclaved aerated concrete is a better choice for the environment.

7.Energy Saver: It is an excellent property that makes it an excellent insulator and that means the interior environment is easier to maintain. When it is used, there is usually not a need for any supplementary insulation

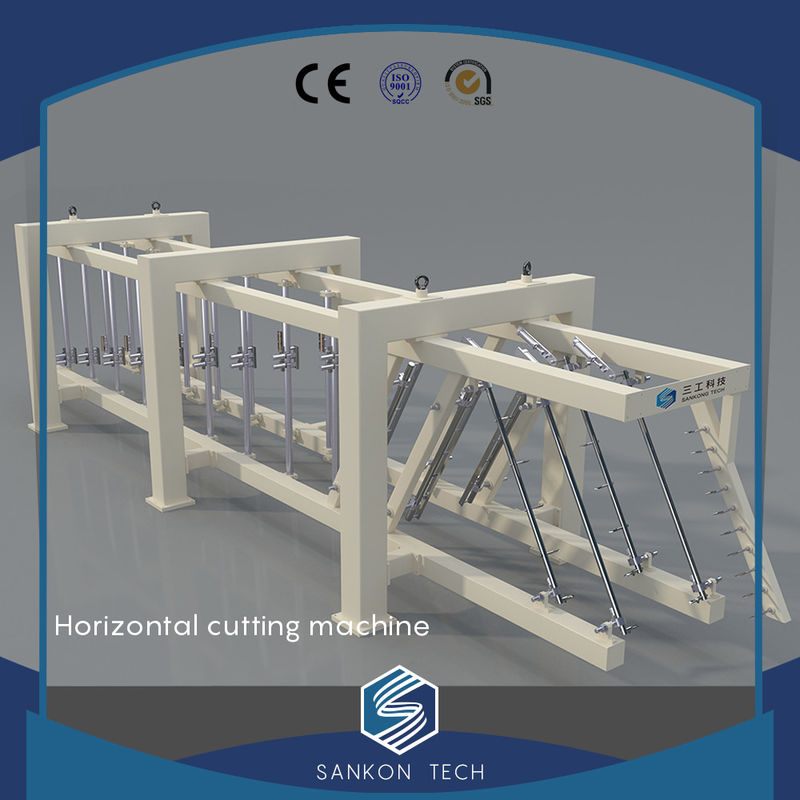

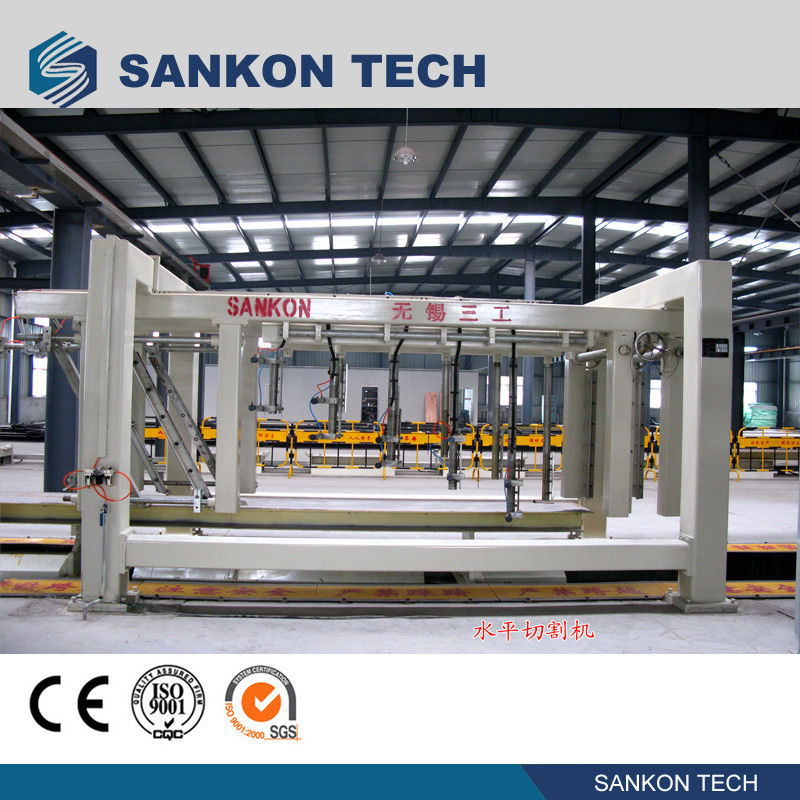

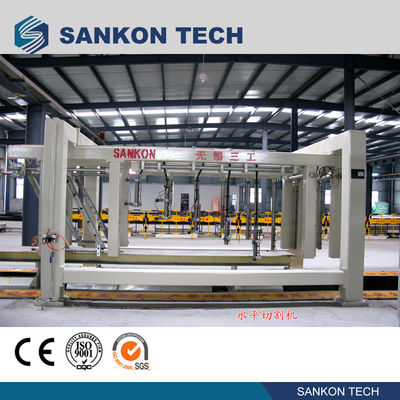

Horizontal Cutting Machine



Aerated Autoclaved Concrete block machine line cutting machine Introduction:
The cutting machine is the most important part of Aerated Autoclaved Concrete block machine line.The production is more than 50,000m3. The cutting machine is the necessary hard-core,and is the indispensable part to improve the production. Our factory’s product--JL series cutter, this equipment can realize the cutting of the body one's goal instantly, six turn over cutting, because its advanced craft, there is no need of the second time hoisting, so can reduce the damage of th body because of multiple hoisting. Therefore, this product have been sold over the nation,and gain high praise from the ueser.With several years technological innovation,we have developed many kinds of models’concrete cutters.

Horizontal SANKON 12.9kw AAC Block Cutting Machine 0

Working principle:

After turn the body on the over turning platform with the Base Plate,move towards the cutter until the small sliding table. After 90 degrees turn over, move the body from the small sliding table to the cutting position,cut the body’ four sides horizontally,then lengthwise cutting.After cutting ,move the body from the small sliding table to the over turning platform,turn the body on the counter-turnplate by 90 degrees with reversing direction.



Main techniacl parameters

No Title Unit Index remark
1 Production capacity Ten thousand m3/year 10-30 Annual output
2 Body sizes M 6*1.2*0.6 Net
3 Cutting modulus mm 5/10 vertical cutting /horizontal cutting
4 Cutting precision mm ±3±1.5±1.5 Length,width,height
5 production cycle Min/mould 6
6 The weight of the host cutter T 18 vertical cutting /horizontal cutting
7 installed capacity of the host cutter Kw 12.9 Including the hydraulic station





Features

1. Simple and practical model structure, easy to install and maintain;

2. The cake is placed sideways so that the width of the cake is 600mm and the height is 1200mm. The cutting wire is short, not easy to break, not easy to drift, and the cutting precision is high;

3. The longitudinal cutting device is fixed, and the longitudinal cutting is completed when the cutting trolley walks. The cutting time is short.The horizontal cutting device adopts steel wire cutting to shorten the length of steel wire and ensure the cutting precision.

4. The milling groove can be completed when the cake is vertically cut, without the need for additional groove processing equipment;

5. The aerated concrete cutting machine cuts the billet body on six sides, and the product quality is not affected by the mold oil and mold deformation;

6. Aerated concrete airdrop cutting machine can produce plates in addition to blocks;

7. The cutting process of machine type (flip, longitudinal and transverse) is completed at different work stations. The work of each work station is simplified and the operation and maintenance is convenient.
