H400mm Side Rolling Guide  for AAC Block Machine

H400mm Side Rolling Guide for AAC Block Machine

  • High Light

    H400mm Side Rolling Guide

    ,

    Block Machine Side Rolling Guide

  • Name
    Side Rolling Guide
  • Rated Voltage
    380V
  • Type
    Customized
  • Certificate
    ISO9001/CE
  • Packing Type
    Suit For Shipping
  • After-sales Service Provide
    Engineers Available To Service Machinery Overseas, Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Online Support
  • Place of Origin
    CHINA
  • Brand Name
    SANKON
  • Certification
    ISO9001/CE
  • Model Number
    CUSTOMIZED
  • Minimum Order Quantity
    1SET
  • Price
    USD1~500/SET
  • Packaging Details
    SUIT FOR SHIPPING
  • Delivery Time
    3MONTHS
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200SETS/YEAR

H400mm Side Rolling Guide for AAC Block Machine

SANKON Building Materials Technology Co. LTD is a one stop solutions provider for autoclaved aerated concrete (AAC) production equipment including complete AAC production lines.



We manufacture a wide range of building material machines, including block making machines, concrete panel machines, dry mortar machines, and more.



Our main products include AAC block production line,ALC panel production line,ALC panel production installation of cinstruction equipment and their matched equipment.



Side Rolling guide- Block Brick Machine



Application:

The side rolling guide can move automatically when the side panel moves,

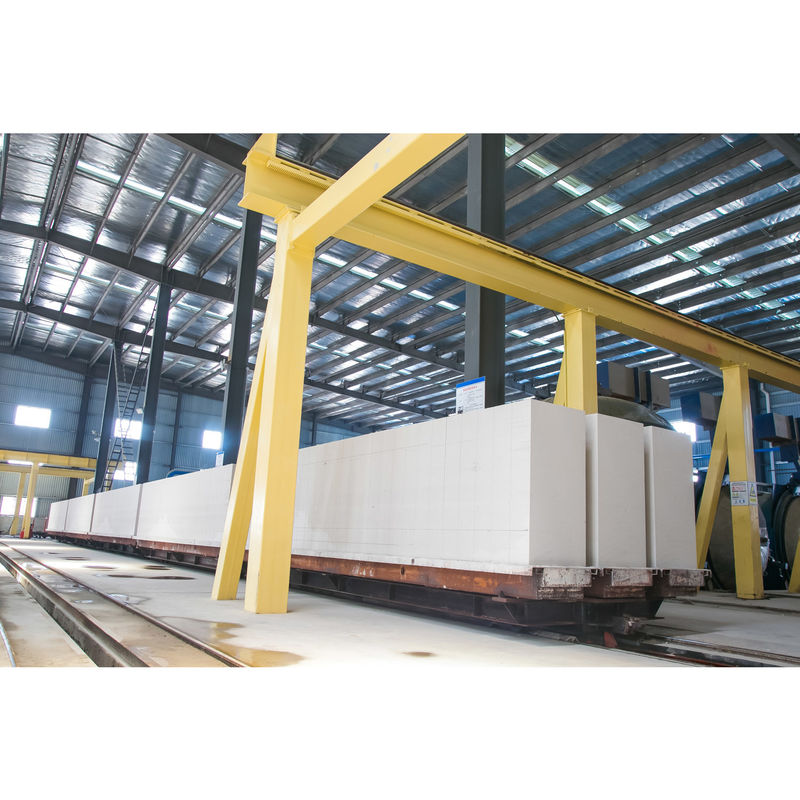

H400mm Side Rolling Guide  for AAC Block Machine 0

Technical paramete:

The length and the rolling guild quantity can be made base on process required.

Driving rolling guide:Max size

a. L: 1415 mm W: 400 mm h: 400mm

b. Weight: 128.6 kg

c. Cycloidal pin wheel speed reducer: XWD2-43-0.37

Motor power 0.37Kw

Transmission ratio i=43

d. Convey wheel rotate speed: 34r/min

Driven rolling : Max size

a. L: 925mm W: 400mm H: 400mm

b. Weight: 82kg



Structure:

The convey line is composed by many rolling guide, and each has driving and driven machine, when the convey line is assembled, it should install the driving and driven machine one by one

The driving convey rolling guide is composed of base, driving shaft, convey wheel, bearing, bearing base and joint shaft and reducer, etc. The base is welded by steel and steel panel

The driven convey machine is composed of base, transmission shaft, convey wheel, bearing, bearing base, and the base is welded by steel and steel panel.



Work principles:

Put the side panel on the assembled convey line, connect with the power supply to start the reducer to drag the convey wheel rotate.



Maintenance:

The bearing should add lubricant oil regularly

The rolling wheel should clean if it does not work.



Cautions:

Nobody is allowed to stand within the convey line during it runs

Shut-off the power supply after each shift.
