Automatic Concrete AAC Block Brick Making Production Line Machine-Aluminum powder mixer

Automatic Concrete AAC Block Brick Making Production Line Machine-Aluminum powder mixer

  • Name
    Aluminum Powder Mixer
  • Condition
    New
  • Type
    Autoclaved Aerated Concrete Aac, Other
  • Voltage
    220V/380V
  • Raw Material
    Cement, Sand, Gypsum, Lime, Fly Ash Ect.
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Video Technical Support, Field Maintenance And Repair Service
  • Place of Origin
    CHINA
  • Brand Name
    SANKON
  • Certification
    ISO9001/CE
  • Model Number
    CUSTOMIZED
  • Minimum Order Quantity
    1SET
  • Price
    USD1~
  • Packaging Details
    SUIT FOR SHIPPING
  • Delivery Time
    3MONTHS
  • Payment Terms
    L/C, T/T
  • Supply Ability
    2000SETS/YEAR

Automatic Concrete AAC Block Brick Making Production Line Machine-Aluminum powder mixer

SANKON Building Materials Technology Co. is a one stop solutions provider for autoclaved aerated concrete (AAC) production equipment including complete AAC production lines.



We manufacture a wide range of building material machines, including block making machines, concrete panel machines, dry mortar machines, and more.



Application:

It is used for mixing aluminum powder.

Automatic Concrete AAC Block Brick Making Production Line Machine-Aluminum powder mixer 0

Technical parameter:

1. Max outside size

Length:630mm Width:500mm Height:1142mm

2. Weight≈200kg

3. Motor

Type:Y2-801-4

Power:0.55KW

Rotate speed:1390r/min

Mixing drum capacity:V=0.052m3

4.Mixing speed:1390 r/min

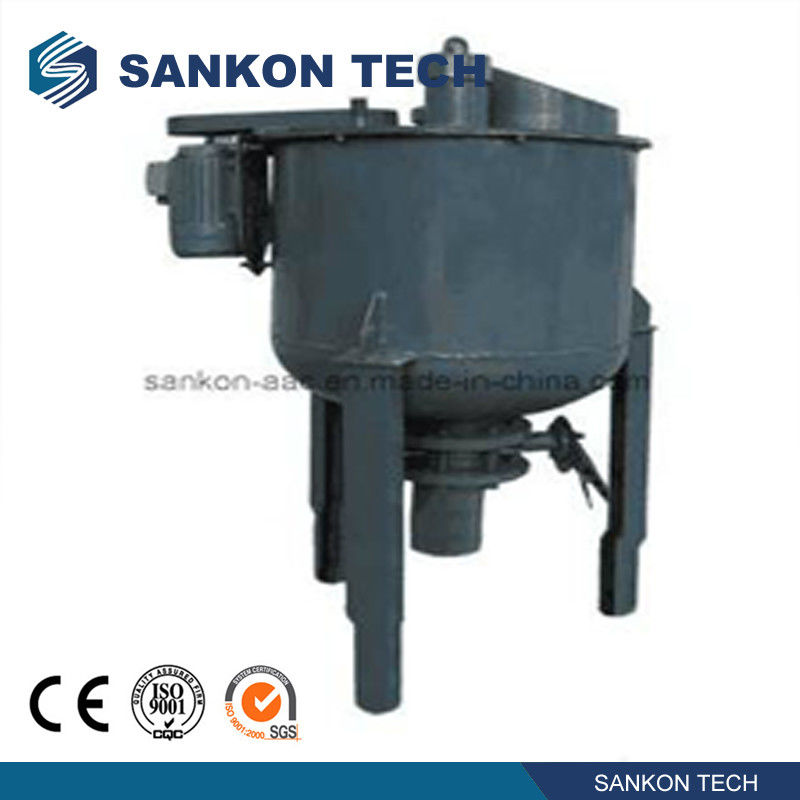

Structure:

The aluminum mixer is composed of mixing drum, mixing shaft and motor

The mixing drum is cylindrical and the bottom shaped like a truncated cone, which is easy to discharge. It is made of steel and the sprue gate is controlled by the pneumatic butterfly valve

The mixing shaft is composed of driven wheel, bearing base and agitator.

Automatic Concrete AAC Block Brick Making Production Line Machine-Aluminum powder mixer 1

Work principle:

The aluminum powder mixer is driver by the motor which rotate as clockwise direction, and drag the mixing shaft and agitator, and make the material turn inside the drum, the mixing powder comes down from the sprue gate and it is controlled by the butterfly valve.



Adjust and trial runnin:

Adjust the parts below after the installment

a.Tighten the motor belt

b.Tighten the gasket screw.

2.Trial runnin

a.The motor runs stably and rotate as clockwise direction.

b.The mixing drum is stable.

c.The shaft is easy to run, no abnormal sound

d.The pneumatic butterfly valve well works.



Maintenance and repair:

1.Maintenance

Clean the mixing drum and mixing shaft once a week, tighten the gasket of the shaft.

2.Repair

Disassemble the sprue gate and clean it and pneumatic butterfly valve and the pipe once per month.
