Semi Automatic w600mm Side Plate AAC Brick Machine

Semi Automatic w600mm Side Plate AAC Brick Machine

  • High Light

    Side Plate AAC Brick Machine


    w600mm Plate AAC Brick Machine

  • Name
    Side Plate
  • Type
  • Rated Voltage
  • Certificate
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
  • Delivery Time
  • Payment Terms
    L/C, T/T
  • Supply Ability

Semi Automatic w600mm Side Plate AAC Brick Machine

Automatic AAC Panel and Block Production Line,Semi Automatic AAC Panel Production Line-Side Plate


Recommended application:

In AAC production line, side plate should match with mould .Use for put slurry.

After ovtuern sling demoulded,side plate should load AAC block,to cutting section to steaming section until to packing section.

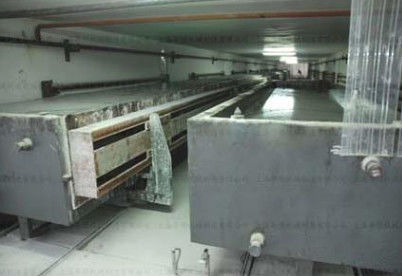

Semi Automatic w600mm Side Plate AAC Brick Machine 0

Side plate characteristics:

Bend dealing,hard-wearing,No easy deformation,Long service life

No spare parts,Simple maintenance


Side plates functions:

The side plates are auxiliary tools, and the function of the side plates is to carry the wheels for cutting, coding and steaming.The side plate is the main equipment to carry out the flipping, cutting and transportation of the blank body. Therefore, the material and materials of the side plate are directly related to the safe completion of the transfer, flipping and cutting of the blank body.



Specification(m) Size(mm) Length Width
4.2X1.2X0.6 4200 600
4.8X1.2X0.6 4800 600
5X1.2X0.6 5000 600
6X1.2X0.6 6000 600
6X1.5X0.6 6000 600


The structure of the side plate:

The mold can be divided into two forms, movable and integral. The side plate has double hollow layer for heat preservation. The inner plate is welded with 8mm thick steel plate to increase its rigidity, prevent deformation and prolong the service life.


The mold can be combined with the side plate to contain slurry, which can be static cured and foamed to form the blank body. The side plate also carries the blank body to the cutting machine for cutting, and then enters into the autoclaved kettle for steaming and raising after being assembled with the steaming trolley.
