AAC Brick Making Machine Mixer
Recommended application

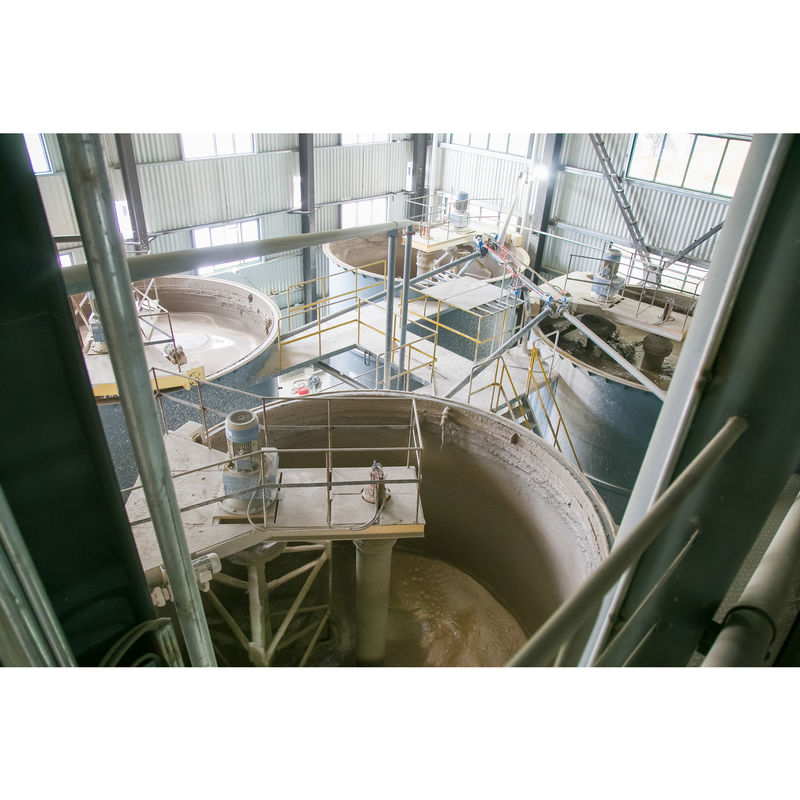

In AAC block production line, mixer mainly used for slurry preparation.
Mixer types are different, useage are different.

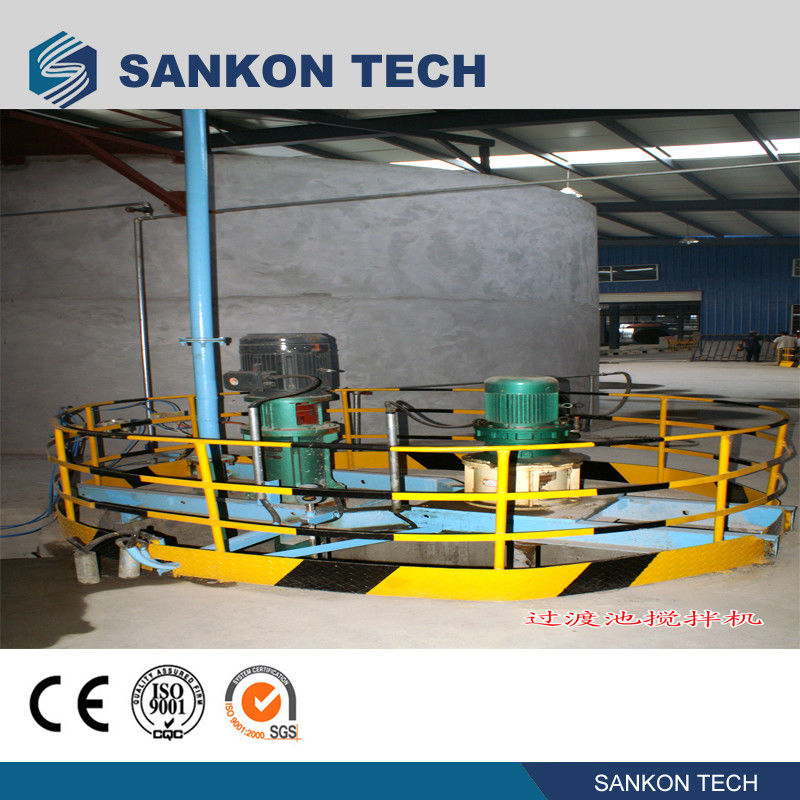

6m3 mixer used for ferry pool, sand/flyash making slurry,waste slurry under pouring mixer.
20m3 mixer used for slurry preparation besides ball mill, waste slurry preparation besides cutting machine.
50m3 mxier 60m3 mixer 100m3 mixer used for slurry preparation.

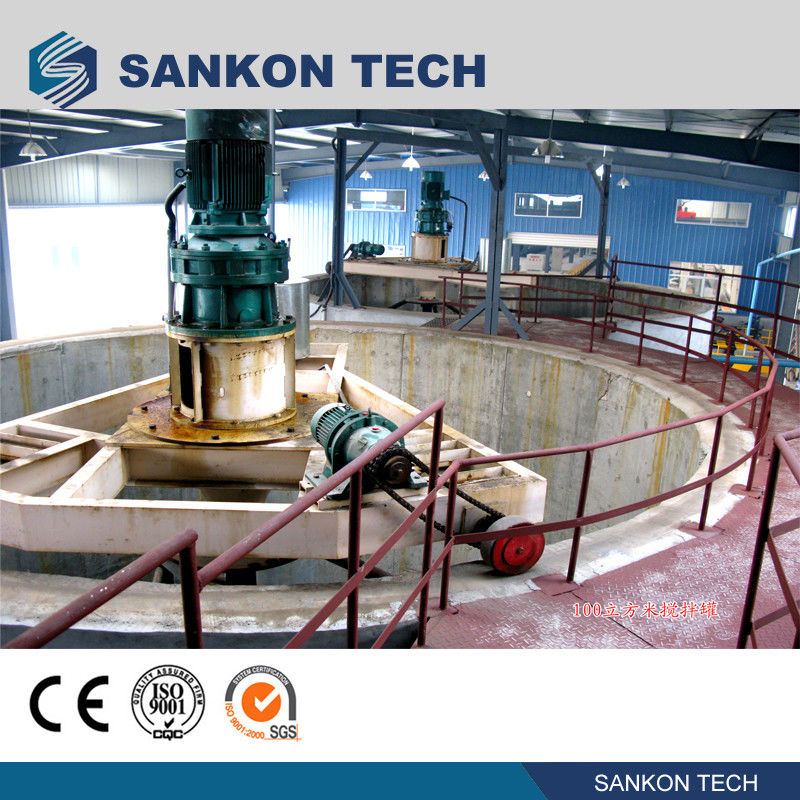

100m3 imepper running type
Direct connection type:Comparative economy,easy installation
Rotary type:Mixing evenly,fastly mixing speed.
Advangtages:
Easy installation,screw connection
Basically no quick-wear part
All reducer is gear reducer.long life,not easy to break.
6m³ Blade
20m³ Blade
100m³ Direct Type Blade
100m³ Rotary Type Blade
Specification:
| No | Name | Power(KW) | Pool/Tank Size | |
| 1 | 6³Mixer | 5.5 | φ2000X2000 | |
| 2 | 20³Mixer | 11 | φ3000X3290 | |
| φ3600X2000 | ||||
| 3 | 50³Mixer | 18.5 | φ3600X5000 | |
| 4 | 60³Mixer | 18.5 | φ4000X4000 | |
| 5 | 100³Mixer | Rotary type | 18.5+2.2 | φ6000X4000 |
| 6 | Direct Type | 22 | φ6000X4000 | |
