Length 6000mm Autoclave Side Plate for carrying wheel

Length 6000mm Autoclave Side Plate for carrying wheel

Length 6000mm Autoclave Side Plate for carrying wheel
Length 6000mm Autoclave Side Plate for carrying wheel Length 6000mm Autoclave Side Plate for carrying wheel Length 6000mm Autoclave Side Plate for carrying wheel Length 6000mm Autoclave Side Plate for carrying wheel

Large Image :  Length 6000mm Autoclave Side Plate for carrying wheel Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: SANKON
Certification: ISO9001/CE
Model Number: CUSTOMIZED

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: USD1~1500/PC
Packaging Details: SUIT FOR SHIPPING
Delivery Time: 3MONTHS
Payment Terms: L/C, T/T
Supply Ability: 2000PCS/YEAR
Detailed Product Description
High Light:

Length 6000mm Autoclave Side Plate

,

Wheel Carrying Autoclave Side Plate

Side Plate



Instruction:
Side plate usually assemble with mould to put slurry.
after cutted,mould will be demoulded ,left side plate and cake.
side plate will take cake enter into autoclave,after steamed,cake will be separated ,side plate will recycle by side plate roller bed.

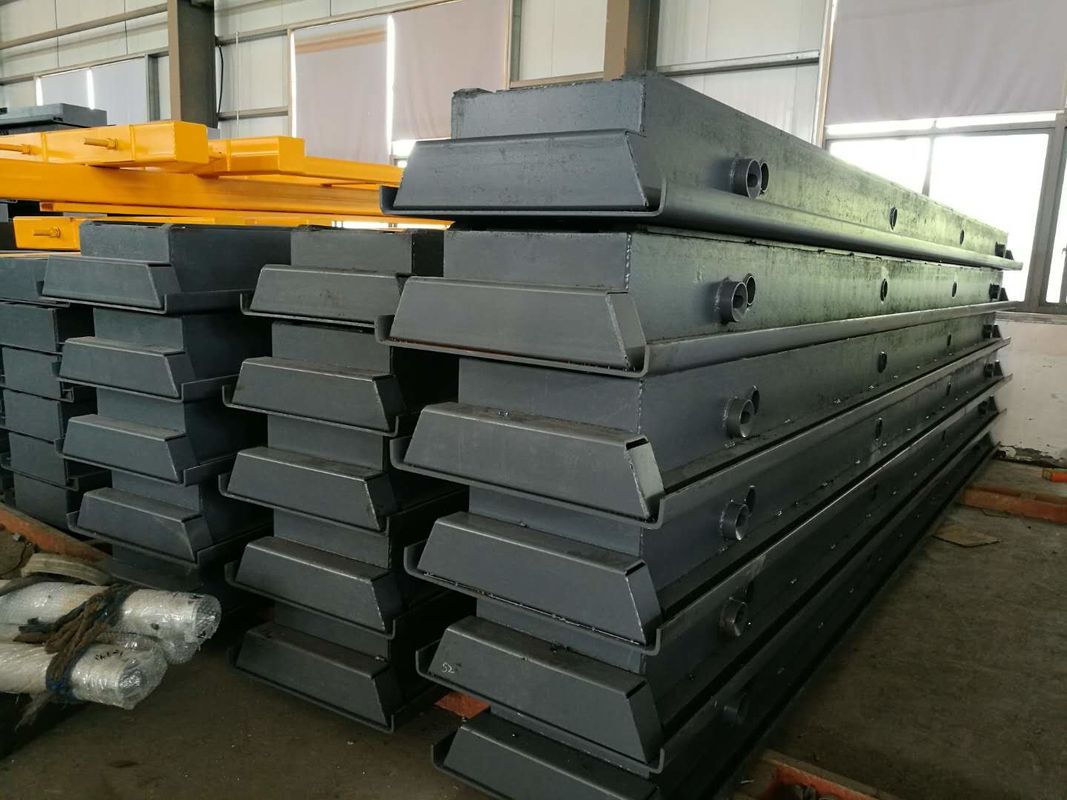

Length 6000mm Autoclave Side Plate for carrying wheel 0

Functions of the side plates:

The side plates are auxiliary tools, and the function of the side plates is to carry the wheels for cutting, coding and steaming.The side plate is the main equipment to carry out the flipping, cutting and transportation of the cake. Therefore, the material and materials of the side plate are directly related to the safe completion of the transfer, flipping and cutting of the cake.



Specification:

Specification(m) Size(mm) Length Width
4.2X1.2X0.6 4200 600
4.8X1.2X0.6 4800 600
5X1.2X0.6 5000 600
6X1.2X0.6 6000 600
6X1.5X0.6 6000 600



The structure of the formwork and the side plate:

The mold can be divided into two forms: movable and integral. The side plate has double hollow layer for heat preservation. The inner plate is welded with 8mm thick steel plate to increase its rigidity, prevent deformation and prolong the service life.

The mold can be combined with the side plate to contain slurry, which can be static cured and foamed to form the cake. The side plate also carries the cake to the cutting machine for cutting, and then enters into the autoclaved kettle for steaming and raising after being assembled with the steaming trolley.



Features and Advantages:

Our side plate use bending machine to bend ,so our side plate is not easily deformed. hard-wearing quality and easily maintance.
