H2108mm Slurry Density Meter

H2108mm Slurry Density Meter

  • High Light

    2108 Mm Slurry Density Meter

    ,

    Electrical Slurry Density Meter

    ,

    380V Slurry Density Measurement

  • Name
    Electrical Slurry Meter
  • Rated Voltage
    380V
  • Brand
    SANKON
  • Certificate
    ISO9001/CE
  • Place of Origin
    CHINA
  • Brand Name
    SANKON
  • Certification
    ISO9001/CE
  • Model Number
    CUSTOMIZED
  • Minimum Order Quantity
    1SET
  • Price
    USD1~5000/SET
  • Packaging Details
    SUIT FOR SHIPPING
  • Delivery Time
    3MONTHS
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200SETS/YEAR

H2108mm Slurry Density Meter

Application:

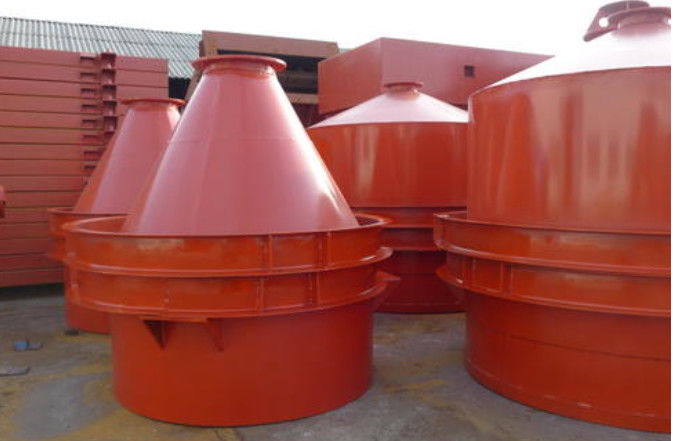

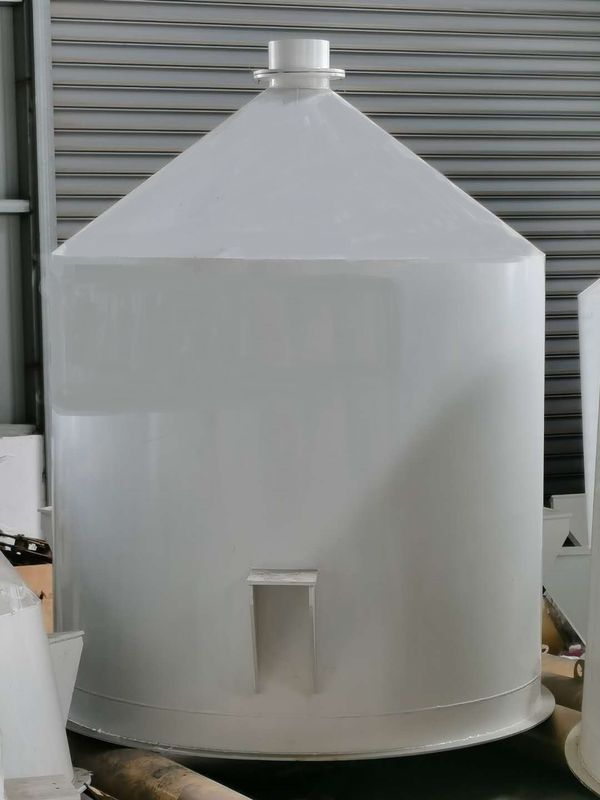

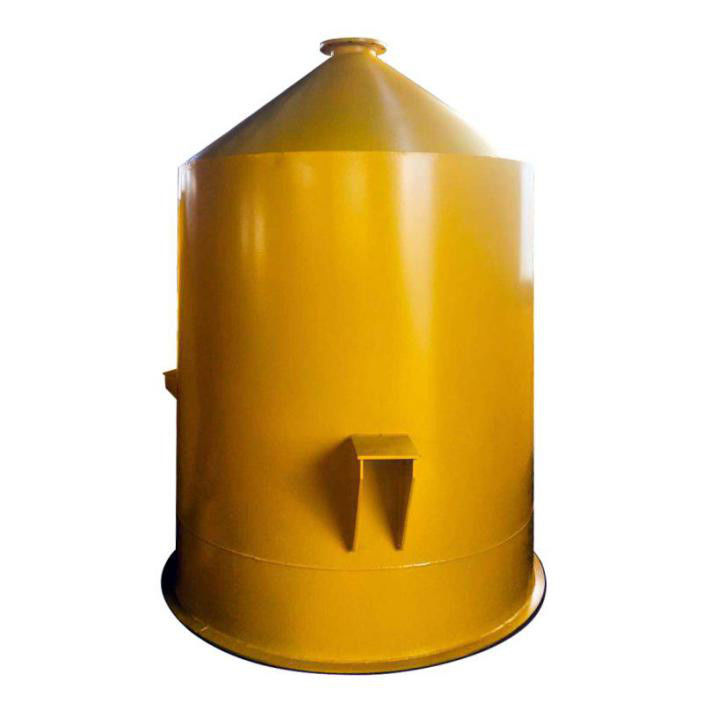

It is a meter (refer to the picture) used for measuring the powder before slurry feeding for mixing.

H2108mm Slurry Density Meter 0

Technical Parameter:

1.Max size

Diameter:φ2075 mm Height≈2108 mm

2.Weight:800 kg

3.Weight:3000 kg

4.Sensor Type:“FW”

5.Pneumatic butterfly valve:D671J-10-150



Structure:

The meter is composed of chamber, support ring, load sensor and pneumatic butterfly valve.

The drum shapes like a truncated cone, which make the discharge quick. It is made of rolling steel and there is washing pipe inside.

The support ring is made of steel and there is chamber on the top and the support ring below it, and there are 3 load electrical sensors hang among the chamber and support ring, and there is pneumatic butterfly valve in the discharge drum to control the program.



Work Principles:

When the slurry is fed into the chamber, the electrical sensor will transfer the weight to the display automatically, and it will output the signal to the computer. The discharge is controlled by the pneumatic valve.



Maintenance:

Shut off the power supply after each shift, and clean the drum wall, in order to make sure the powder weighing is accurate

Clean the dust on the sensor and weighing display.



Cautions:

It should follow the instruction when operate the meter

No other current is allowed to go through the electrical sensor, for example, when weld the ground wiring.

Do not sunshine the weighing display, and avoid any sudden temperature change and vibration

The meter has been calibrated before ex-factory, do not change.



Safety:

No one is allowed to stand around the machine when feeding the slurry.
