0.37Kw L1415mm Conveyor Side Guide For Convey Line

0.37Kw L1415mm Conveyor Side Guide For Convey Line

  • High Light

    L1415mm Conveyor Side Guide

    ,

    0.37Kw Conveyor Side Guide

  • Name
    Conveyor Side Guide For Convey Line
  • Rated Voltage
    220V/380V
  • Brand
    SANKON
  • Material
    Stainless Steel, Iron+paint
  • Packing Type
    Suit For Shipping
  • After-sales Service Provide
    Engineers Available To Service Machinery Overseas, Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Online Support
  • Place of Origin
    CHINA
  • Brand Name
    SANKON
  • Certification
    ISO9001/CE
  • Model Number
    CUSTOMIZED
  • Minimum Order Quantity
    1SET
  • Price
    USD1~500/SET
  • Packaging Details
    SUIT FOR SHIPPING
  • Delivery Time
    3MONTHS
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200SETS/YEAR

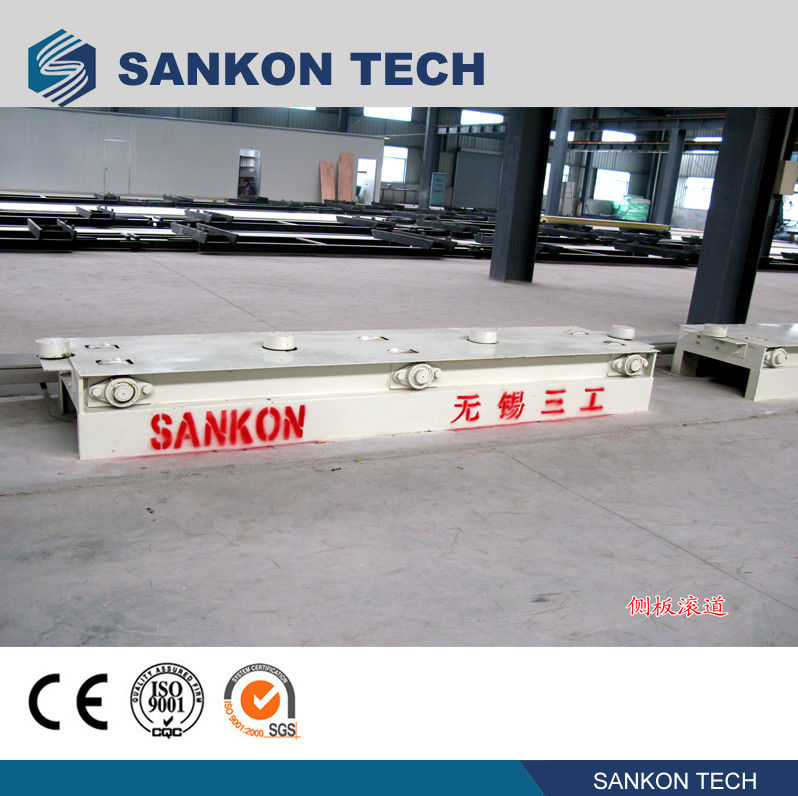

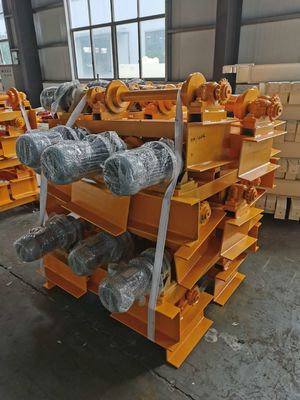

0.37Kw L1415mm Conveyor Side Guide For Convey Line

Side rolling guide



Application:

The side rolling guide can move automatically when the side panel moves,

0.37Kw L1415mm Conveyor Side Guide For Convey Line 0

Technical paramete:

The length and the rolling guild quantity can be made base on process required.

Driving rolling guide:Max size

a. L: 1415 mm W: 400 mm h: 400mm

b. Weight: 128.6 kg

c. Cycloidal pin wheel speed reducer: XWD2-43-0.37

Motor power 0.37Kw

Transmission ratio i=43

d. Convey wheel rotate speed: 34r/min

Driven rolling : Max size

a. L: 925mm W: 400mm H: 400mm

b. Weight: 82kg



Structure:

The convey line is composed by many rolling guide, and each has driving and driven machine, when the convey line is assembled, it should install the driving and driven machine one by one

The driving convey rolling guide is composed of base, driving shaft, convey wheel, bearing, bearing base and joint shaft and reducer, etc. The base is welded by steel and steel panel

The driven convey machine is composed of base, transmission shaft, convey wheel, bearing, bearing base, and the base is welded by steel and steel panel.



Work principles:

Put the side panel on the assembled convey line, connect with the power supply to start the reducer to drag the convey wheel rotate.



Maintenance:

The bearing should add lubricant oil regularly

The rolling wheel should clean if it does not work.



Cautions:

Nobody is allowed to stand within the convey line during it runs

Shut-off the power supply after each shift.
