AAC Block Machine with High Quality and Competitive Price-Finished crane/clamper

Application:

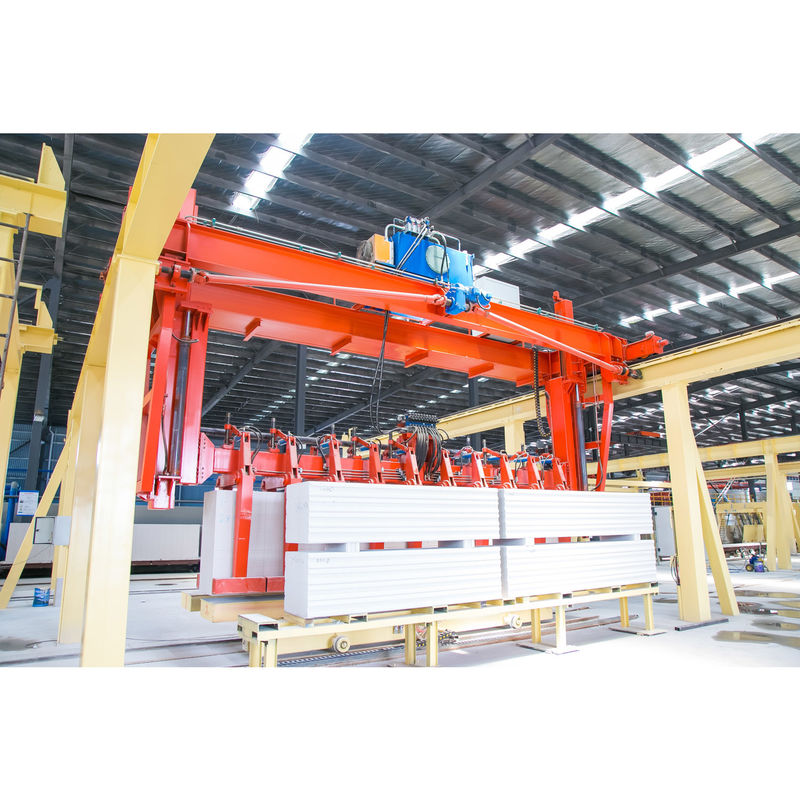

The hoist (Refer to the picture) is the back-up equipment for autoclaved aerated concrete cutting machine. It is installed on the automatic billet shift machine and the lifting is controlled by the guide frame. It is an ideal choice for finished concrete transportation, featured of stability, positioning-accuracy and no sway.

Structure;

The clamp is composed of a horizon beam, a vertical beam, a guide frame, a guide device, clamp device, a lifting unit and cylinder system. The two beams are made of huge steel pipes, so it is featured of good stiffness, compact structure and it can be easily installed and debug. Lifting device is located on the horizon beam and the guide unit is fixed on the vertical beam.

Working principle:

The clamp can be moved, lifted, clamped and released.

move

It can be moved axially.

Lifting

When pulley is hung by hanger, guiding device will move along the guiding frame and then the hoist will go up and down.

Clamp and release

The hydraulic station supplies oil to the cylinder to make the clamping device rotate, the cylinder contracts to clamp, and elongate to release.

When the cylinder contracts and is in a clamped state, the spreader is lifted, so the finished product can be lifted.

Pilot running and debugging:

Pilot running

The sling can go up and down smoothly and stably, without any abnormalities, no jamming and no swaying and there is limit space in the top and bottom.

Debugging

a.If the horizon beam is not critical to the upstanding beam, a pad is needed.

b.The gap between the wheel and frame may be proper if it is swaying.

Maintenance and repair:

1.Maintenance

a.Pleas make sure that the cylinder system is maintained according to its operation manual.

b.Please remove the dust on the piston rod after work with cotton cloths and make sure it is reset.

c.To clean up the clamp unit, lifting device, guide unit and make sure that there is no waste left.

2.Repair

Please check all fasteners to avoid any possible loose and change worn parts.
